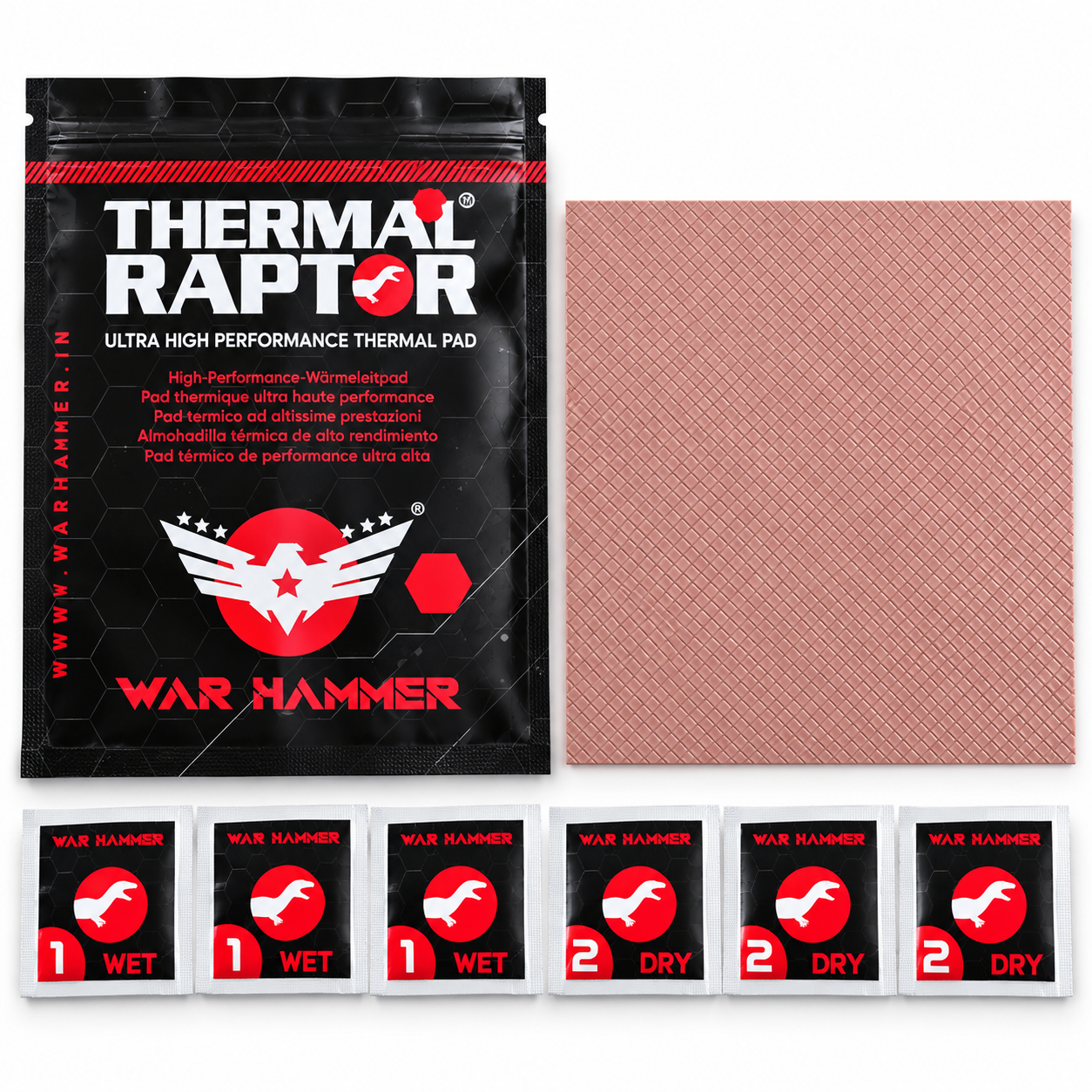

War Hammer – Thermal Pad Raptor Ultra (100x100x1mm) Thermal Pad

Key Specifications & Features

• Thermal Conductivity: High thermal conductivity rated at 12.0 W/m·K for fast heat transfer and lower operating temperatures.
• Electrical Safety: Electrically non-conductive and non-corrosive, eliminating short-circuit risks around sensitive circuitry, pins, and leads.
• Compressibility & Gap Filling: Highly compressible and conformable material that easily molds to irregular surfaces and varying component heights.
• Long-Term Durability: Engineered to resist drying, hardening, degradation, and pump-out over time with zero bleeding/oil leakage.
• Sheet Dimensions: 100 × 100 mm sheet, easily trimmable using a hobby knife or scissors.

• Thickness:- 1.0 mm (Small gap)

Recommended Applications

Ideal for filling gaps between heat-generating electronic components and heatsinks:

• VRMs / MOSFETs: Power delivery sections on graphics cards and motherboards.

• VRAM / GPU Memory: Fast heat transfer for high-performance memory chips.

• M.2 SSD Controllers & NAND: Helps maintain optimal sustained read/write speeds without thermal throttling.

• Motherboard Chipsets: Keeps platform controller hubs thermally stable.

• Laptop Cooling Modules: Suitable for dense heat-pipe assemblies and cramped thermal designs.

• General Electronics: Power supplies, LED drivers, and other uneven high-heat components.

Important Usage Note:

DO NOT USE DIRECTLY ON CPU OR GPU DIES. This pad is engineered specifically for component gap-filling applications (VRMs, memory, chipsets, SSD controllers). Direct bare-die cooling requires thermal paste or phase-change material.

Installation Overview

1. Clean the Surface: Thoroughly remove old thermal paste, pads, dust, and oils using the included wet and dry wipes.

2. Measure the Gap: Check clearance between heatsink and component to select the proper pad thickness.

3. Cut to Size: Measure and slice the pad to fit component dimensions.

4. Apply Pad: Position over the component ensuring full coverage.

5. Secure Heatsink: Reinstall heatsink using even screw pressure. (If no heatsink is present, the pad can remain uncovered to radiate heat into the chassis).
